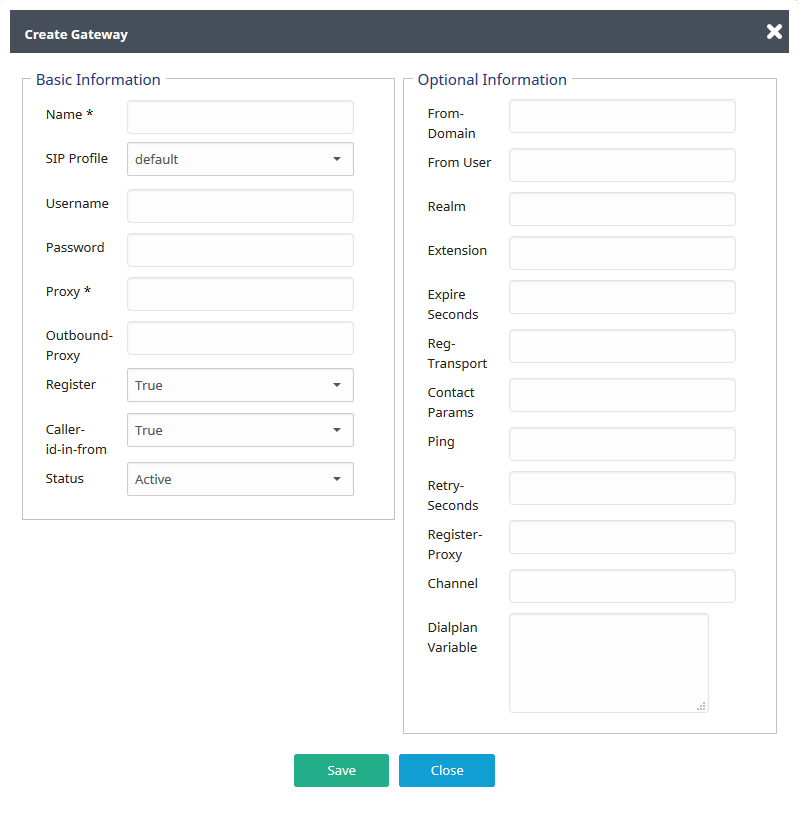

Create GatewayΒΆ
Gateways Add/Edit Form Fields Description:
Basic Information
| Name | Username of gateway |
| SIP Profile | Select appropriate sip profile |
| Username | Same as gateway name |
| Password | Password for authentication |
| Proxy | Here specify the ip of proxy server |
| Outbound-Proxy | Here specify the ip of outbound-proxy |
| Register | True / False |
| Caller-Id-In-From | True / False |
| Status | Active / Inactive |
Optional Information
| From-Domain | Domain url |
| From User | From user : optional same as username |
| Realm | |
| Extension | Extensions to be registered with your voip provider |
| Expire Seconds | Expire in seconds |
| Reg-Transport | Which transport to use for register |
| Contact Params | |
| Ping | Send an options ping every x seconds, failure will unregister and/or mark it down |
| Retry-Seconds | How many seconds before a retry when a failure or timeout occurs |
| Register-Proxy | Send register to this proxy: optional same as proxy |
| Channel | |
| Dialplan Variable |
